Fully-Automatic Continuous Foaming Machine

全自动水平连续发泡生产线 ECMT-100

主要用途:

本设备主要适用于8-70kg/m3密度范围的软质聚氨脂泡绵生产，采用了自动化程度高、掌握更加灵活的人机界面控制系统，用户可以储存100种不同的配方，也可以随时对配方进行调整或更改，并可通过互联网进行远程控制，使生产成本的控制更为科学、直观。可以生成出各种理想的家私绵、鞋材绵、胸围绵、电子绵，以及适应于包装、制衣和汽车工业用的各种泡绵。（本机有：自动手控和自动人机界面两种配置可供选择）



东莞市艾立克机械制造有限公司

电话:13662885182

QQ：2772194047

海绵机械

海绵切割机

海绵发泡机

海绵聚氨酯发泡机

海绵平切机

海绵立切机

海绵圆盘平切机

海绵圆切机

半自动海绵发泡机

手动海绵发泡机

海绵压形机

海绵打孔机

连续发泡生产线

再生绵平切机

全自动海绵立切机

路轨式海绵平切机

两轮海绵立切机

海绵裁断机

海绵角度切割机

数控线刀海绵异型切割机

数控单刀海绵异型切割机

数控双振刀海绵异型切割机

海绵再生机

蒸汽海绵再生机

海绵破碎机

海绵手动仿形切割机

Process: All the P.U. chemicals are first mixed together in a mixing chamber & then taken into a metal trough wher the initial reaction takes place. The rising foam then passes from the top of the trough on to a variable width fall plate, which then leads the expanding foam block along a metal slat conveyor for further expansion.

Outputs: The machine is delivers a maximum of 350kg per minute.

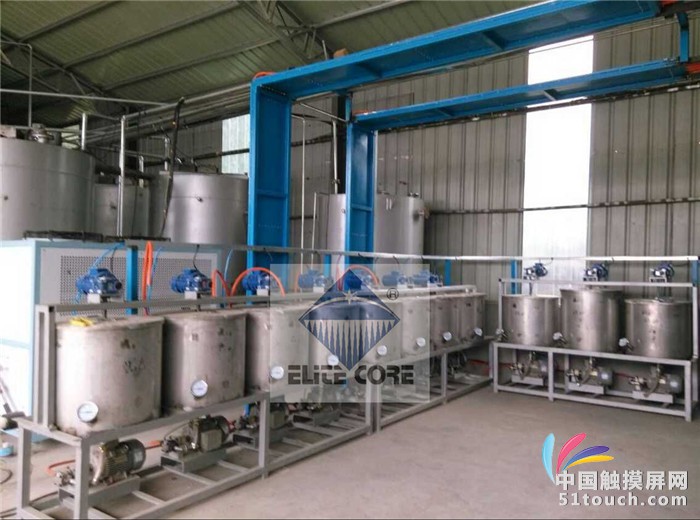

Metering System: There are seven metering systems in all. All metering system are equipped with world class AC motors, AC variable speed drives, Viking, U.S.A made internal gear pumps (for very low slippage), pressure gauges & Recirculation network to ensure high class quality product.

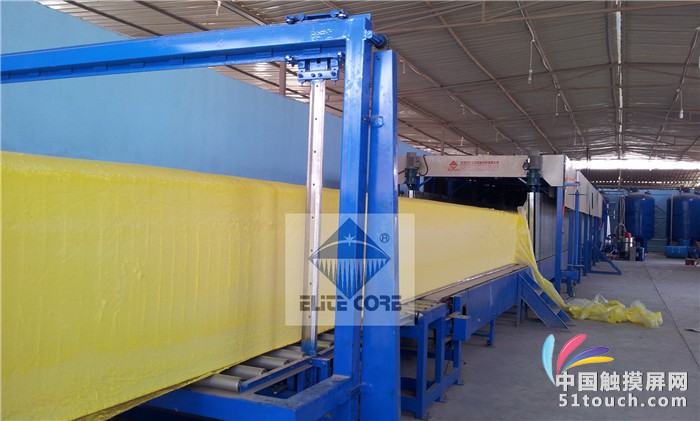

Foaming Tunnel & Conveyor: The tunnel construction forms a complete enclosure around the foam slab with top plates, side walls & conveyor slats. The conveyor motor is also equipped with AC speed drive. Side walls can be adjusted from 0.98m～2.4 m. The length of the conveyor is 16.9 meters.

Trough & Fall Plate: The Trough & fall plate section can be adjusted height wise at various levels to ensure more flattop blocks & is equipped with required motors & gearboxes.

Paper Feed & Rewind : This is a 2-paper system. The bottom paper feed reel is mounted in front of the foaming platform & is equipped with unwinding motor for automatic operation. Rewinding of the side papers is at the other end of the tunnel & the rewinding speed is self –adjustable to synchronize with the conveyor speed.

Control Panels: This is attached at a convenient position on the foaming platform, It is equipped with necessary electronics, flow meters, pressure gauges & AC variable speed drives.

Foam Machine/ Foaming Machine/Foam Produce Machine

海绵设备/海绵发泡设备/海绵生产设备

Description: Foaming Machines Include Three Type: Manual Foaming Machine,Semi-Auto Batch Foaming Machine And Fully-Automatic Continuous Foaming Machine. The Fully-Automatic use to produce high output and high quality foam , manual foaming machine is use for small factory and the semi-auto foaming machine is the best choose for normal factory .

海绵发泡设备系列包括三种型号：手动发泡机，半自动发泡机和全自动连续发泡生产线。全自动发泡线用于高质量，高产量的发泡，手动发泡设备一般用于小型厂，半自动发泡设备是一般海绵厂的最佳选择。



主要技术规格SPECIFICATION:

最大吐出量: Max.Output Capacity:	200～350公斤/分钟(连续型) 200～350kg/min(Continuous Type)
混合头总功率: Mixer Total Power:	37kw
最大搅拌速度: Max.Mixing Speed:	2500～6000转/分钟 2500～6000r/min
发泡形式 Foaming Type:	采用溢流槽或喷头方式. Trough & Sprayer
组份: Save Formular Q.T.Y.:	13组份 13 Groups.
发泡尺寸: Foaming Size:	W2300mm*H1300mm(宽度可调) W2300mm*H1300mm(Width Adjustable)
控制系统: Control System:	PLC 数控触摸屏系统(台湾品牌) 或 电控柜系统 PLC Digital Touch Screen(Made In TaiWan) Or Electirc Control System.
PPG 罐: PPG Tank:	6吨位*1套 6Ton*1Set.
POP罐: POP Tank:	5吨位*1套 5Ton*1Set.
TDI 罐 TDI Tank:	4吨位*1套 4Ton*1Set.
MC 罐: MC Tank:	2吨位*1套 2Ton*1Set.
硅油罐+水罐: Silicone +Water Tanks:	100升*2套(带搅拌系统) 100L*2Sets(With Mixing System)
T-9罐+胺罐+色料罐+碳酸粉罐: T-9+Amine+Color +Caco3 Tanks:	50升*4套 50L*4Sets
侧连板尺寸: Side Wall Size:	L16m*H1200mm
跌落板: Fallplate:	L8.5m*W0.98～2.4m(宽度可调) L8.5m*W0.98～2.4m(Adjustable)
发泡平台: Foaming Platform:	L2000mm*W3000mm*H700mm
输送线 Conveyor Line:	L16.9m
侧纸/底纸输送+收卷系统 Side/Bottom Paper Feed & Rewind System:	2套 2Sets.
走廊: Walkway:	W500mm*L15m
气阀: Air Valves	欧洲标准 Euro Standard
冷热水一体机: Chiller(Both Cooling & Heating System):	1套*1.5HP(台湾品牌) 1Set*1.5HP(Made In TaiWan)
边膜提升系统: Side Film Lifting System:	1套 1Set.
发泡密度范围: Foaming Density Range:	8～70公斤/立方 8～70kg/Cubicmeter.
裁断机: Match With Block Cutter:	1套 1Set.
机械总功率: Total Motor Power:	大约125KW Approx 125kw.
机械净重: Machine N.W.:	约60吨 Approx 60Ton
安装占地面积: Floor Space Required:	L45m*W5m*H4.5m.
