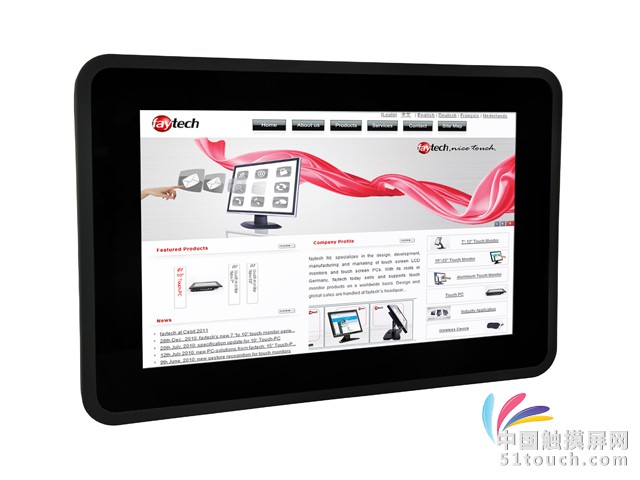

faytech´s embedded capacitive Touch-PC
Available in two standard versions with just W-LAN or with W-LAN, Bluetooth 4.0 and GPS integrated, POE-plugIn and OTG-port added, it is faytech´s most cost effective but still powerful DualCore solution for Linux and Android projects. Even WinCE-BSPs are available for project partners. Now available in faytech´s embedded capacitive TPC series or also as single embedded system. faytech's Embedded Touchscreen Series is the cost effective solution for machine control, automation, and digital signage. By including pre-installed Android 4.2, Android 4.4 or Linux, a powerful Allwinner A20 Dual Core CPU, Mali400MP2 graphics chipset, numerous interfaces such as USB, serial, network, TTL / UART, Mini-PCIe, HDMI, VGA, GPIO, LVDS and extended DC –IN, faytech's new Embedded Series is the right choice for reliable, industrial solutions.
Each embedded system comes standard with 1 GB DDR3 RAM and 8 GB flash memory and includes a S- ATA connector as well as SD card slot for further hard disk expansion. Wi-Fi is integrated, and over MiniPCIe the systems can be upgraded to 3G + GPS using the available SIM card slot.
The touch features capacitive 10-finger multitouch panels, Anti Glare chemical etched treatment and optional bonded to the LED backlighting panels, backed by faytech's warranty for pixel accuracy (A + quality).

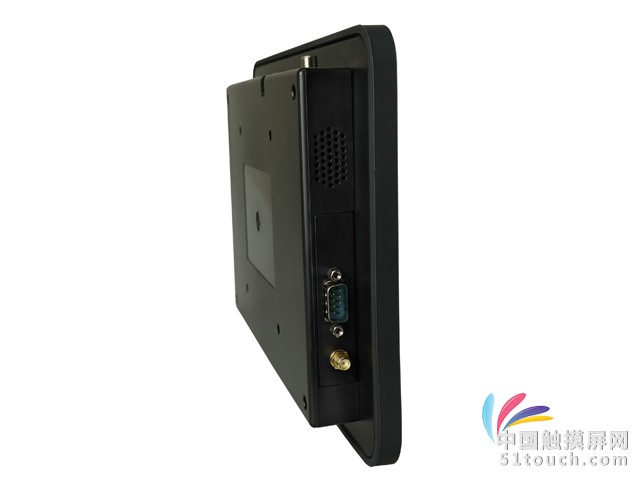

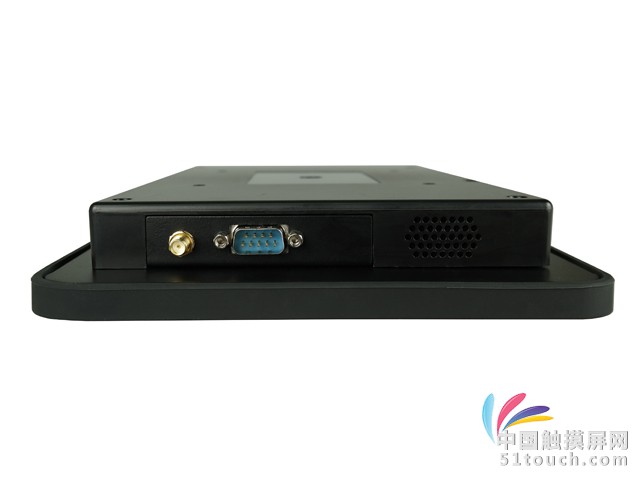

The design of the Embedded Touchscreen series follows the application: flat easy to integrate IP65 front and stable rear housing with VESA-100 mounting for fixing / integration.
faytech 's new Embedded Touchscreen Series is our most cost-effective solution for intelligent machine control, and like all faytech’s reliable touch devices built for precision and durability.
Features
-
Allwinner A20 Cortex™ DualCore Processor
-
1 GB DDR3 RAM; 8 GB NAND FLASH
-
Cortex™ A7 Chipset
-
Full HD Resolution – 1920 x 1080
-
Android 4.2, 4.4 & Linux Support, WinCE optional
-
Optional Bluetooth & GPS
-
Integrated HI-FI 100dB Audio Codec, 2x 6W amplifier
