K49减速机减速比：131.87比,121.48比,104.37比,90.86比,85.12比,75.20比,69.84比,63.30比,56.83比,48.95比,46.03比,39.61比,35.39比,31.30比,29.32比,25.91比,24.06比,21.81比,19.58比,16.86比,15.86比,13.65比,12.19比,11.77比,10.56比,9.10比,8.56比,7.36比,6.58比,5.81比,4.64比（两个减速机组合，可获得更大的减速比）。
K49减速机输出转数：11转,12转,13转,15转,16转,19转,20转,22转,25转,29转,30转,35转,40转,45转,48转,54转,58转,64转,72转,83转,88转,103转,115转,119转,133转,154转,164转,190转,213转,241转,302转。（以上http://www.bosiii.com/product/list-zhijiaojiansuji-cn.html转数均为四级电机算出的，可用两级电机，六级电机计算，也可以用变频电机调速）
K49减速机输出扭矩：5920N.m,5700N.m,5520N.m,5170N.m,4970N.m,4710N.m,4440N.m,4220N.m,4080N.m,3890N.m,3720N.m,4060N.m,3830N.m,3540N.m,3500N.m,3380N.m,3270N.m,3140N.m,2980N.m。（以上扭矩均为四级电机得出扭矩，需要比上面更大的扭矩，可把电机功率加大，型号加大,或者两个组合使用）

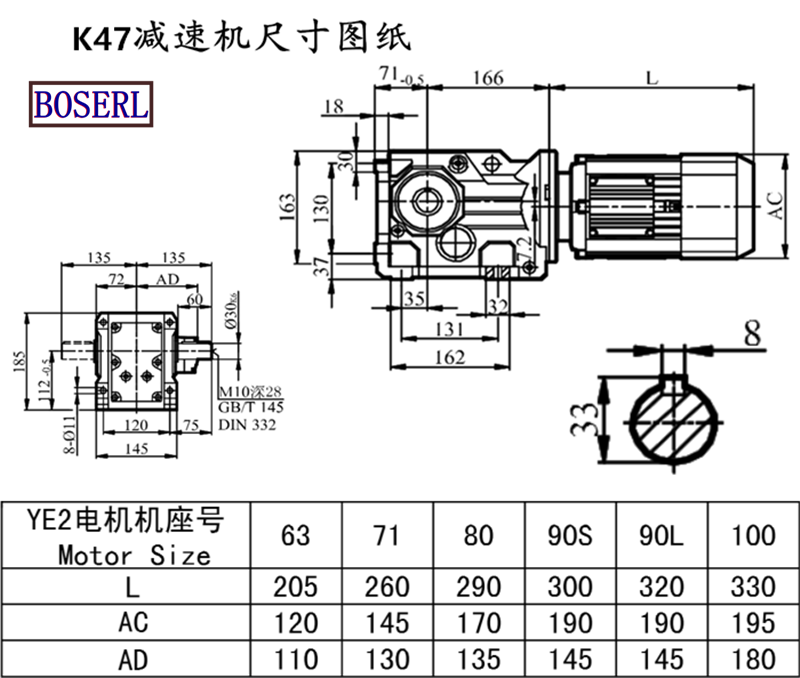

K49减速机安装尺寸：输出http://www.bosiii.com/product/list-kxiliejiansuji-cn.html轴+键Φ33（可定做），高185*宽208（带输出轴）*长237
K47减速机电机型号：K49Y90M4,K49Y80M4,K49Y71M4,K49Y63M4,K49-Y3KW,K49-Y2.2KW,K49Y100M4,K49-Y1.5KW,K49-Y1.1KW,K49-Y0.75KW,K49-Y0.55KW,K49-Y0.37KW,K49-Y0.25KW,K49-Y0.18KW,K49-Y0.12KW,K49DVE90M4,K49DVE90L4,K49DVE80S4,K49DVE80M4,K49DVE71S4,K49DVE71M4,K49DVE63S4,K49DVE63M4,K49DVE63L4,K49DVE100S4,K49DVE100M4,K49DV90M4,K49DV90L4,K49DV80S4,K49DV80M4,K49DV71S4,K49DV71M4,K49DV63S4,K49DV63M4,K49DV63L4,K49DV100S4,K49DV100M4,K49DT90M4,K49DT90L4,K49DT80S4,K49DT80M4,K49DT71S4,K49DT71M4,K49DT63S4,K49DT63M4,K49DT63L4,K49DT100S4,K49DT100M4,K49DRS90M4,K49DRS90L4,K49DRS80S4,K49DRS80M4,K49DRS71S4,K49DRS71M4,K49DRS63S4,K49DRS63M4,K49DRS63L4,K49DRS100S4,K49DRS100M4,K49DR90M4,K49DR90L4,K49DR80S4,K49DR80M4,K49DR71S4,K49DR71M4,K49DR63S4,K49DR63M4,K49DR63L4,K49DR100S4,K49DR100M4,K49DM90M4,K49DM90L4,K49DM80S4,K49DM80M4,K49DM71S4,K49DM71M4,K49DM63S4,K49DM63M4,K49DM63L4,K49DM100S4,K49DM100M4。
